Description

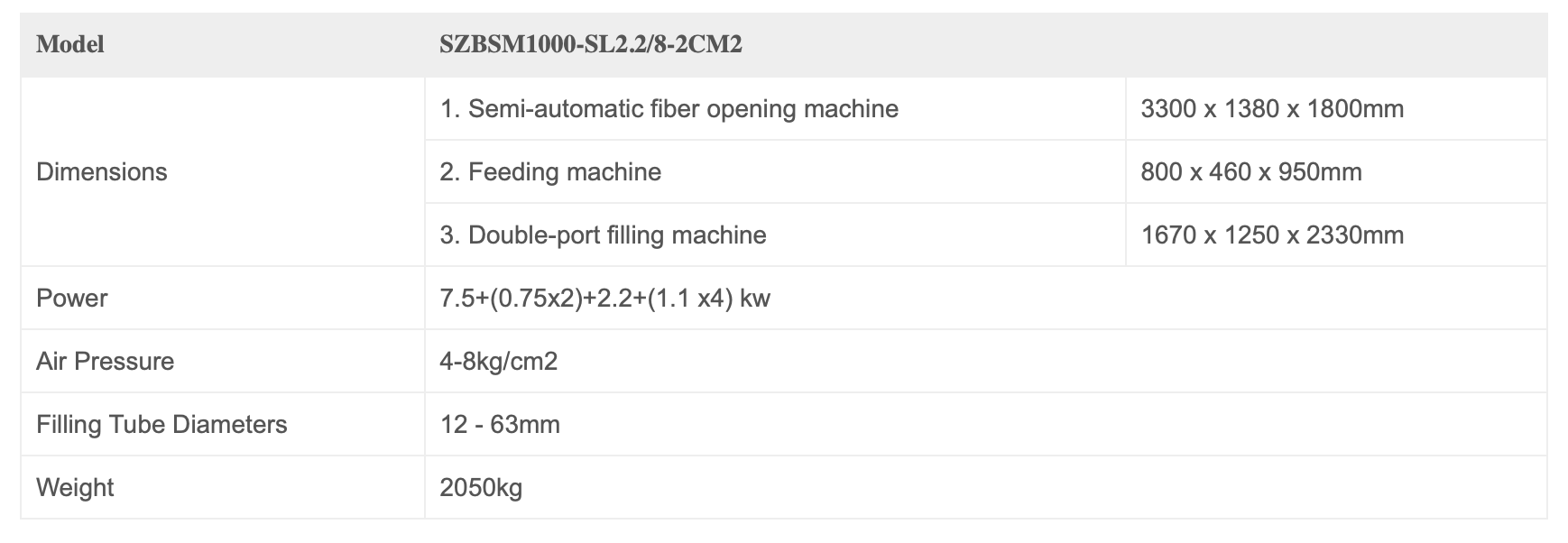

Parameters:
Advantages:
1 .High output
After many tests, the R&D team has adopted the structure of one large drum with five small drums, and adjusted the clearance to the most suitable size, so that the one-time opening rate of fiber cotton can reach 98%, and the opening yield is 50% higher than that of the traditional single drum cotton punching machine security, Shunzhan pays attention to the safety of equipment, all circuits are set with leakage protection, each motor is equipped with overload protection, once there is a short circuit or cotton, the equipment will automatically power off, protection motor each door cover is equipped with a protection switch, to protect the safety of personnel.
2 .Stable
All electrical components are selected from Taiwan Shilin and Taiwan Shi Tong products, frequency converter is selected from listed brand Yingweiten, controller is selected from Mitsubishi PLC, which ensures the stability of equipment operation automation. Cotton machine can according to customer demand for automatic control of cotton supply, as Customers save labor costs.
3 .Good Performance
The large drum adopts low speed of 1400R /min, which avoids the damage to the fiber cotton caused by the high speed of the traditional single drum cotton beating machine, so that the fiber cotton can be opened with high smoothness, and the silicone oil on the fiber cotton will not be knocked off, ensuring the slippage of the fiber cotton.
4. Convenient
Cotton machine are installed with the function of cotton cleaning, when the cotton card, only need to open the cover, using the function of cotton cleaning can easily clean the cotton, convenient and fast.
5. Durable
The big roller is adjusted and balanced, no noise, no vibration, to ensure the life of the machine sprocket and gear are heat treated, hard and durable. Sheet metal adopts automotive paint technology for high temperature paint baking, not easy to rust. The equipment can be used for 5-10 years.
6.Save Power
The motor is controlled by frequency converter, which makes the motor durable and electricity saving. The cotton outlet is specially designed to maximize the use of air pressure of the air compressor and save the air flow of the air compressor, so that the air compressor will not start frequently and play the power saving effect. Not only doll filling machine can fill doll plush toy, also it is suitable for thin pillow or cushion filling, as pillow or cushion stuffing machine , it mainly fill 7-15d long polyester fiber or short polyester fiber.
Special Function:

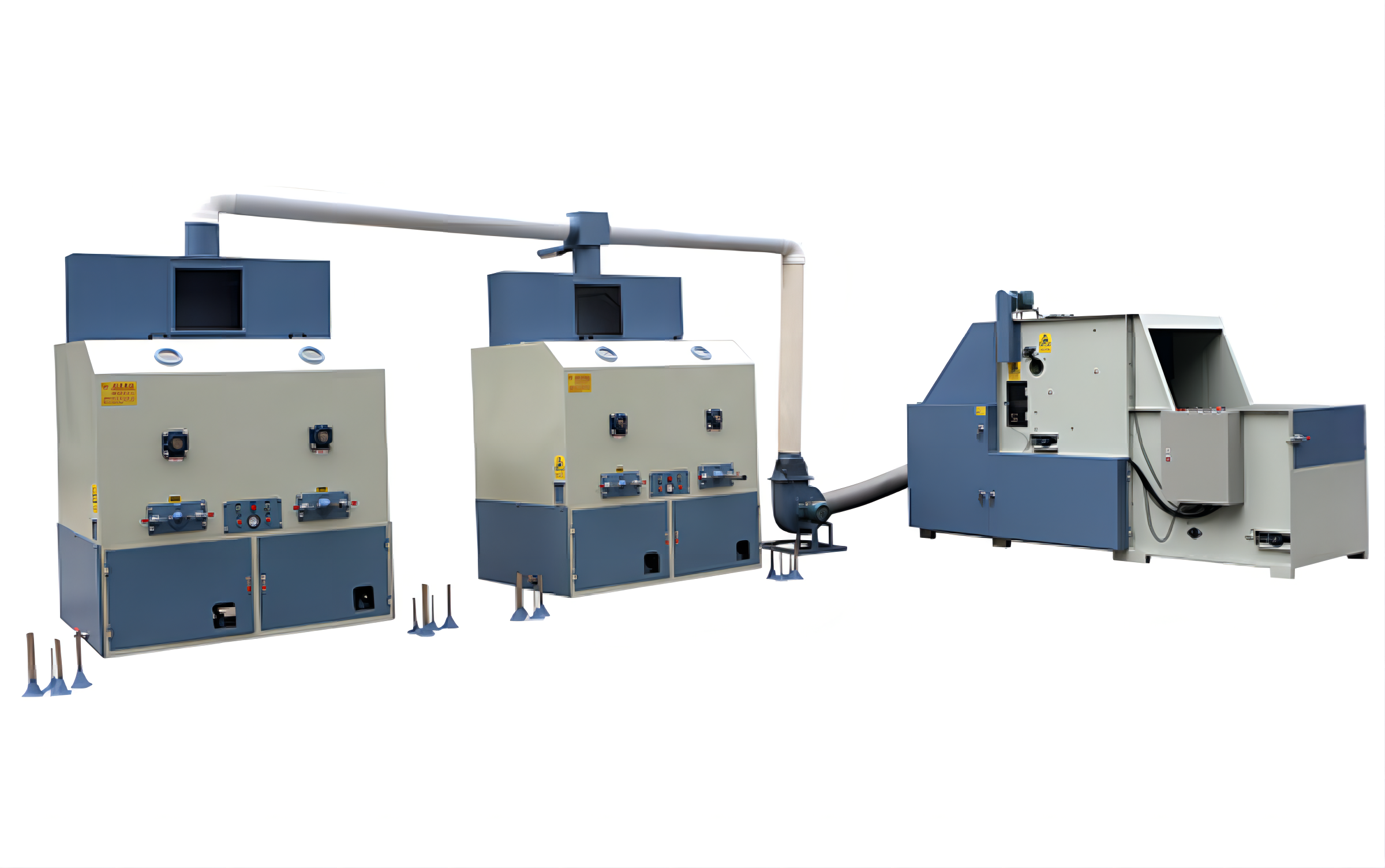

The stuffed toy filling line is designed for stuffing toys with soft fibers. It is controlled by PLC and it can automatically feed and open the raw fiber. It can feed up to 100 to 150 kilograms of fiber material at a time.

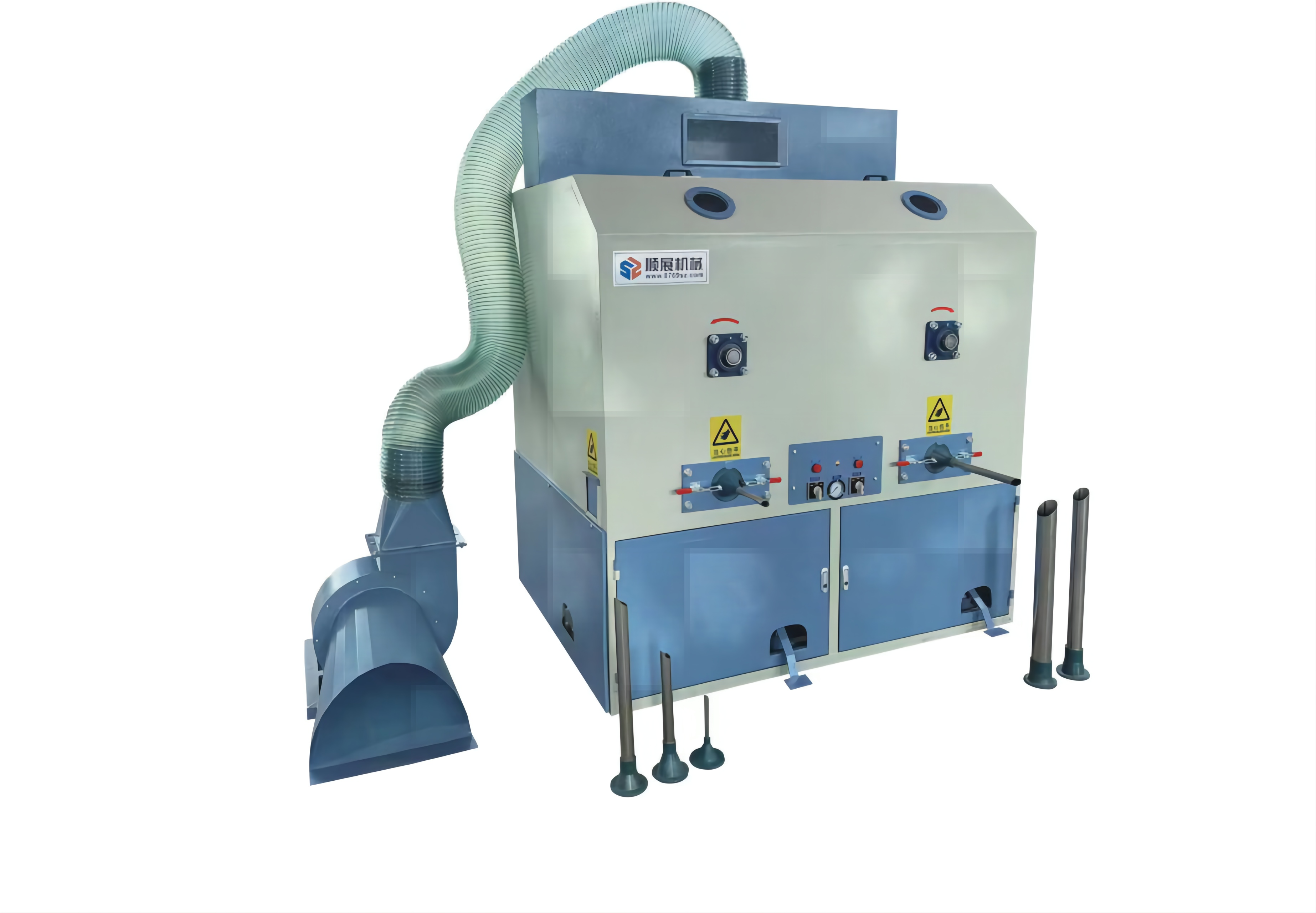

When the raw material reaches the limit, the semi-automatic fiber opening machine will halt feeding and switch to standby mode. The inlet and outlet of the machine is equipped with a photoelectric sensor to ensure uniform loading and prevent blockage. There is a metal detector in the inlet which can detect small metal objects like nails and staples. When it detects metal object, the machine will automatically alarm and discharge the metal object.
When the service door of the equipment is open, the machine will not run to protect the worker.
Each fiber opening machine can be combined with single or multiple fiber filling machines depending on your capacity requirements.
