Description
Machine Operation Method: https://youtu.be/ZCbmCv6jSI0
All Function is same with big scale filling machine , cost-effective, suitable for medium and small garment jacket or duvet enterprise .
产品详情 Technical Parameters
产品型号 Model : JD-1T-2C
主机箱尺寸 Main Machine Case Size : L800*W850*H2000mm
操作台尺寸 Working Table Size: L1000*W500*H1050mm
占地面积 Working Area: L1800*W850mm
包装尺寸 Packing Dimension: L*W*H=970mm*920mm*2150mm+1070mm*580mm*530mm
净重 N.W.:180kgs , 毛重 G.W.: 250kgs
储绒量 Material Storage Volume : 3kgs
额定功率 Rated Power : 900W
设备电压 Equipment Voltage: AC220V/50HZ/60HZ
设备进气要求 Equipment Input Air Pressure : 7-8 Bar
空压机功率/排气量 Screw Air Compressor Power/Exhaust : 3.8 kw 0.8m³/min ( Equipped By Customers), 8mm inner diameter air hose.
可填充材料 Filling Material : 50-90% Goose Down /Duck Down/ Small Feather /Ball Fiber/ 30g below Short Polyester Fiber Each
充绒口数量 Number Of Filling Ports: 1

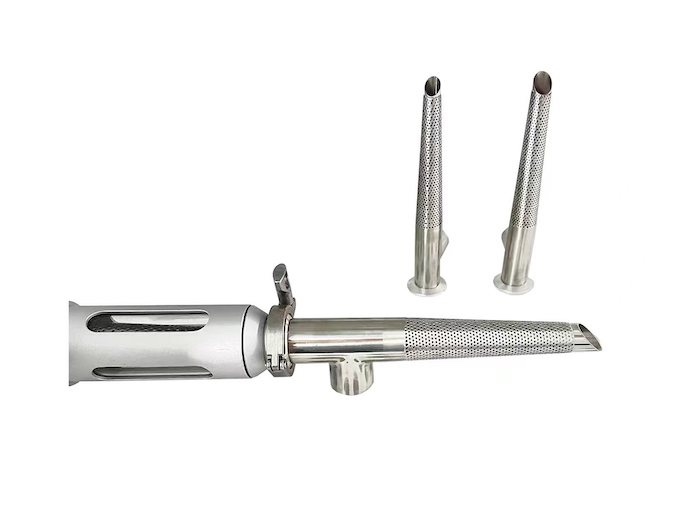

充绒口直径 Pile Filling Diameter: 19/25mm For Jackets , 32mm/750mm Length For Duvet filling
称重循环数 Weighing Cycle Number : 1/2
填充范围 Filling Weighing Range: 0.2-30g For Jacket Per time, 0.2-40g For Duvet/Quilt/Comforter Per time
填充速度 （< 3g) Filling Speed （< 3g) : 600-1200 Cells /H for Jackets Channel , 5-9g/S For Duvet
显示精度（90绒标准测试）Display Accuracy ( 90% Goose Down Testing) : 0.01g
误差范围 90绒标准测试）Precision Wave ( 90% Goose Down Testing) : ±2%
填充测试湿度 Filling Humidity Test : 65% RH 5%

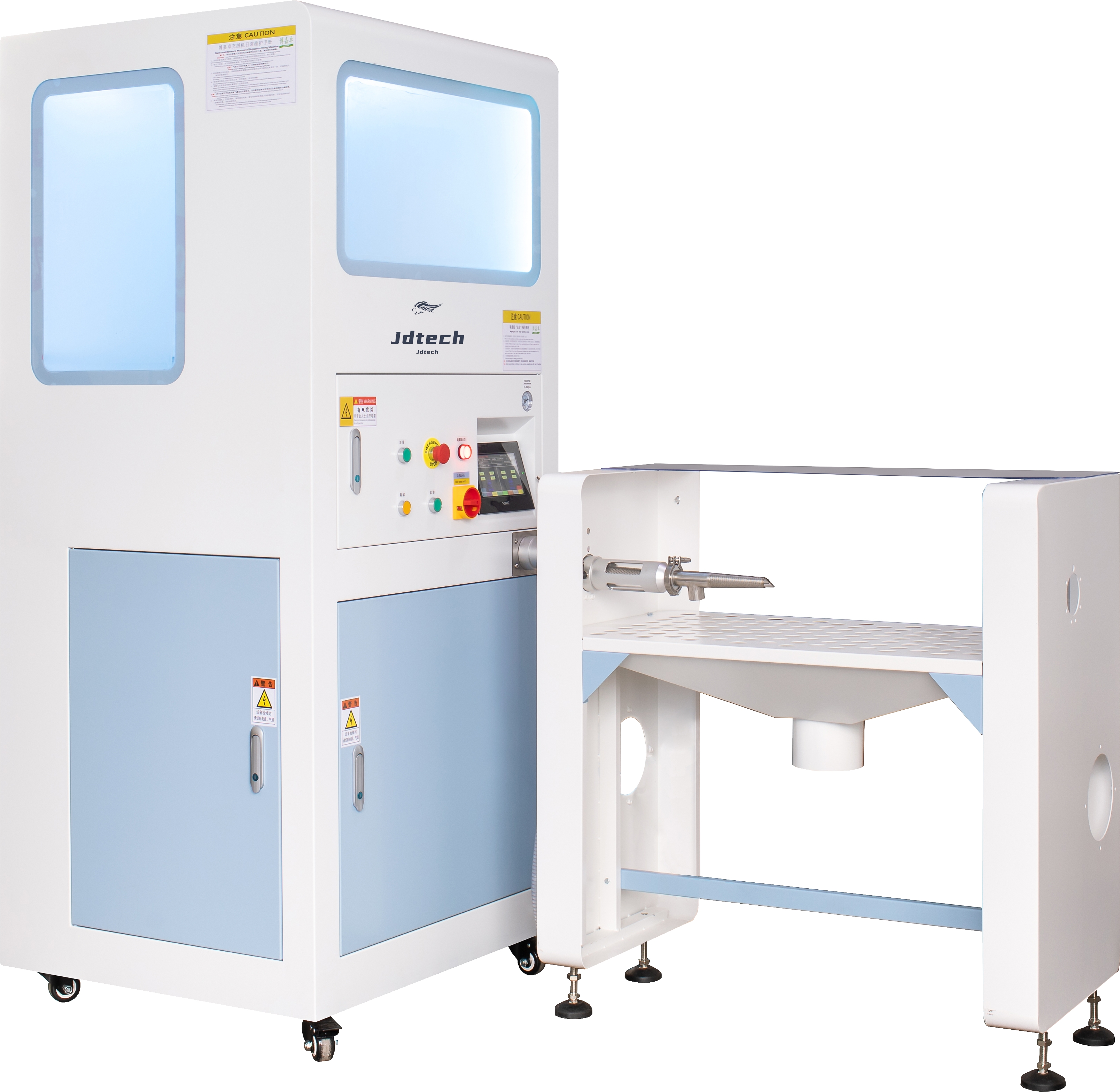

备注 Note: Integral Filling Equipment Includes 1 Set Main Machine Case , Option:1 Set Working Filling Table
特殊功能 Practical Function：
1，自动上料 Auto Feeding
2，自动称重 Auto Weighing
3，远程协助 Remote Assistance
4, 多退少补 Auto Move Back Overweight Material
5，家纺模式 Home Textile Mode(Option)
6, 一键清绒 One Key To Clean Remaining Material In Silo
7, 静电消除 Static Elimination (Auto Humidify)
