Description
More video:1, 7d/15d 51/64mm HCS fiber: https://www.youtube.com/shorts/MKREocgUIyw?feature=share
2, 2-6cm goose /duck feather :https://youtu.be/JlHAr2D22rk

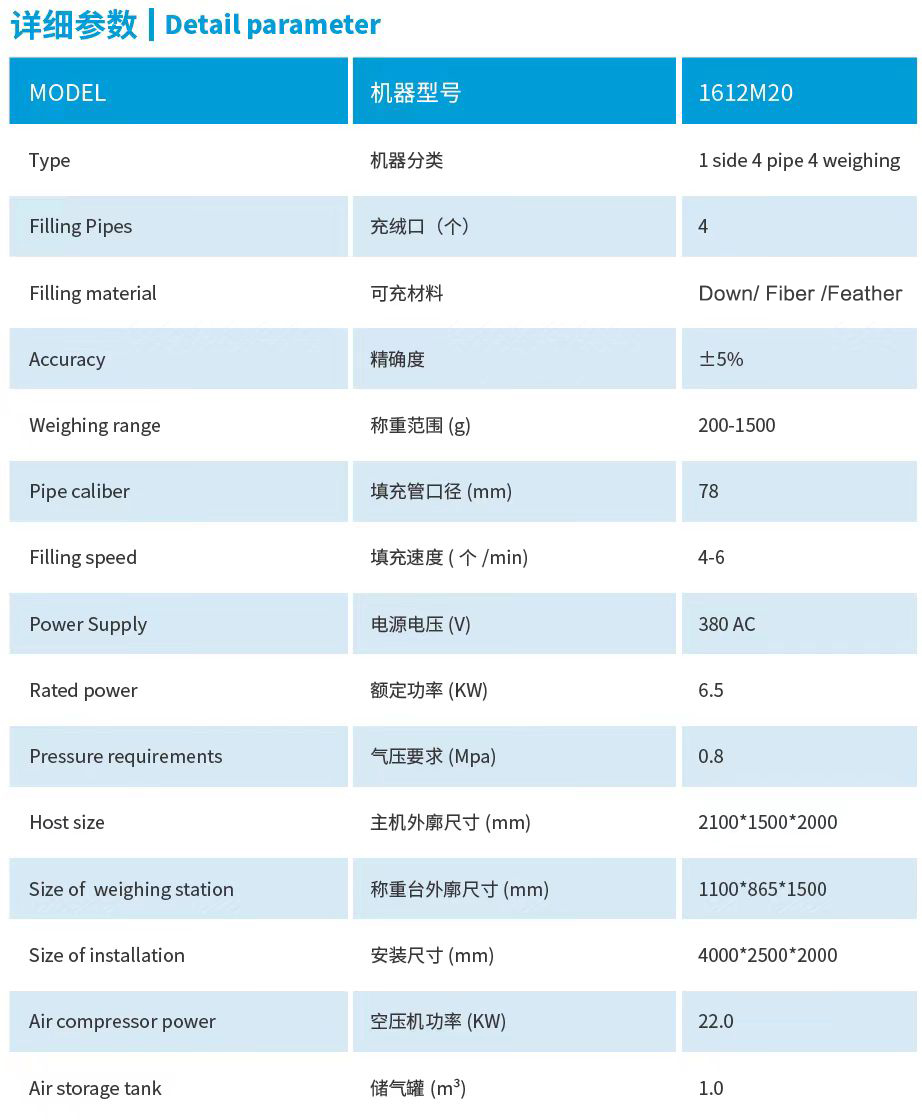

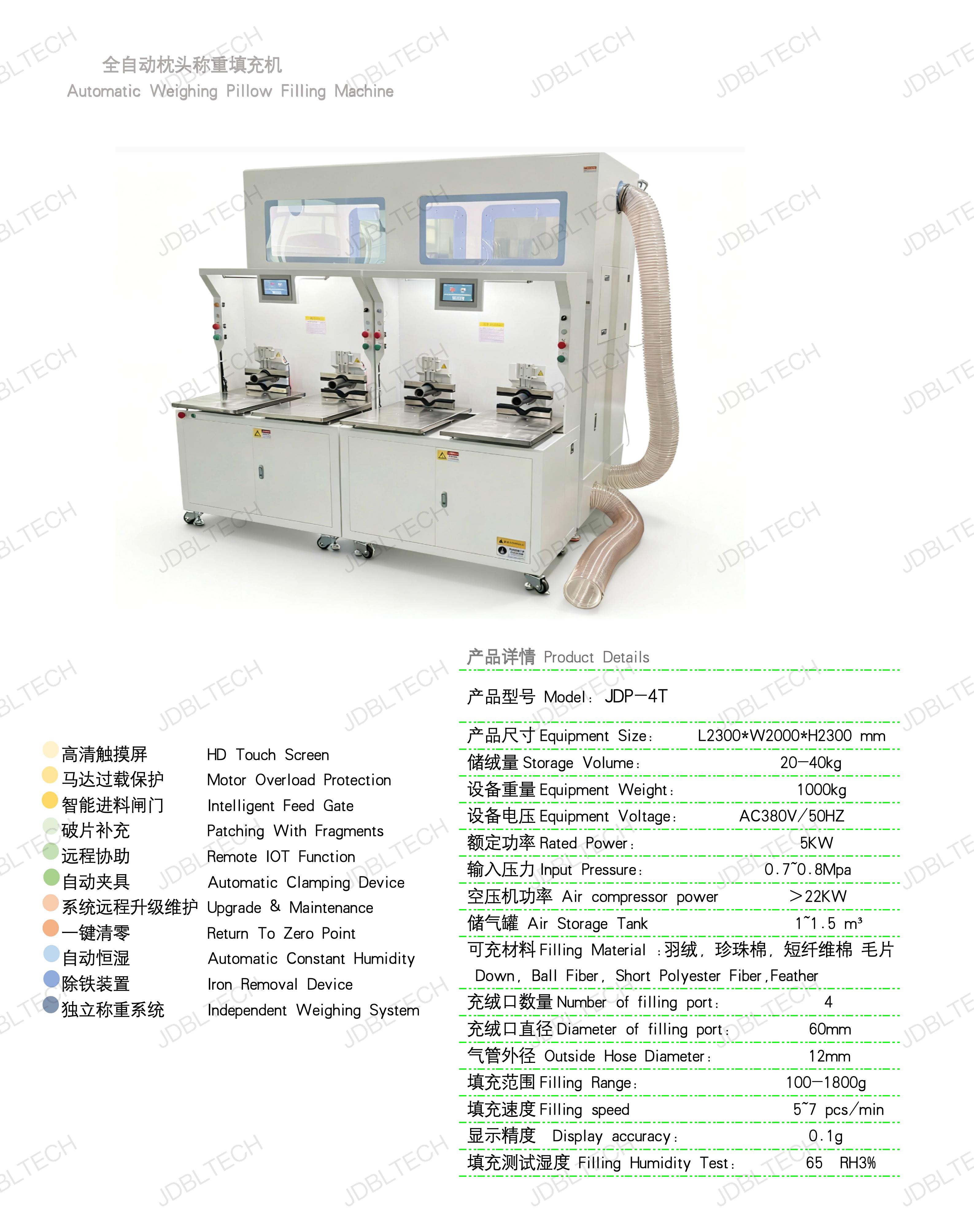

Features:
Production Capacity: 2500-3000 pcs pillows per day /8 working hours/per operator, no need double check weight after filling.
Filling Material : Down / Feather / Fiber( Fiber should has been opened already)
Filling Accuracy : Within 5%
Filling Weight Range: 100g - 1800g per pillow

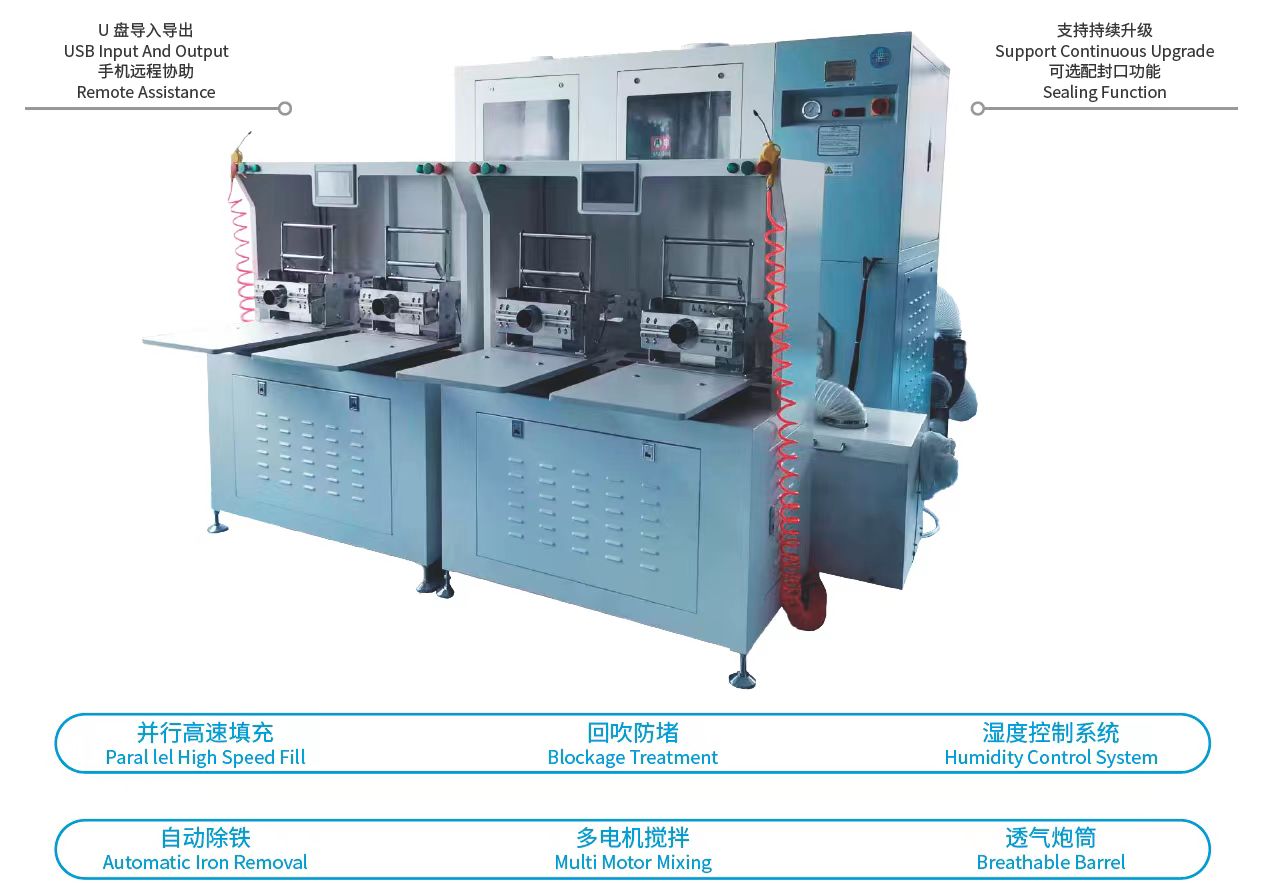

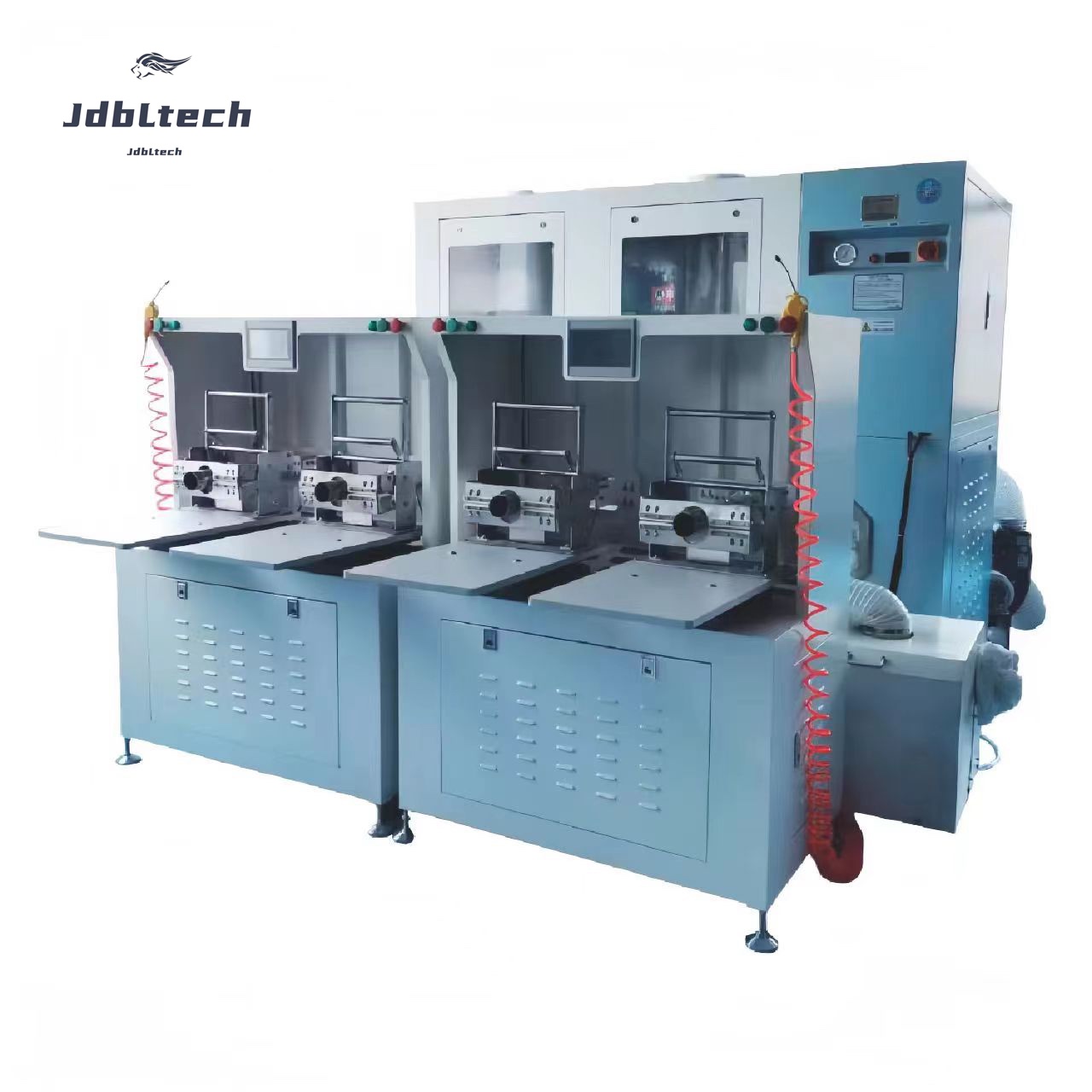

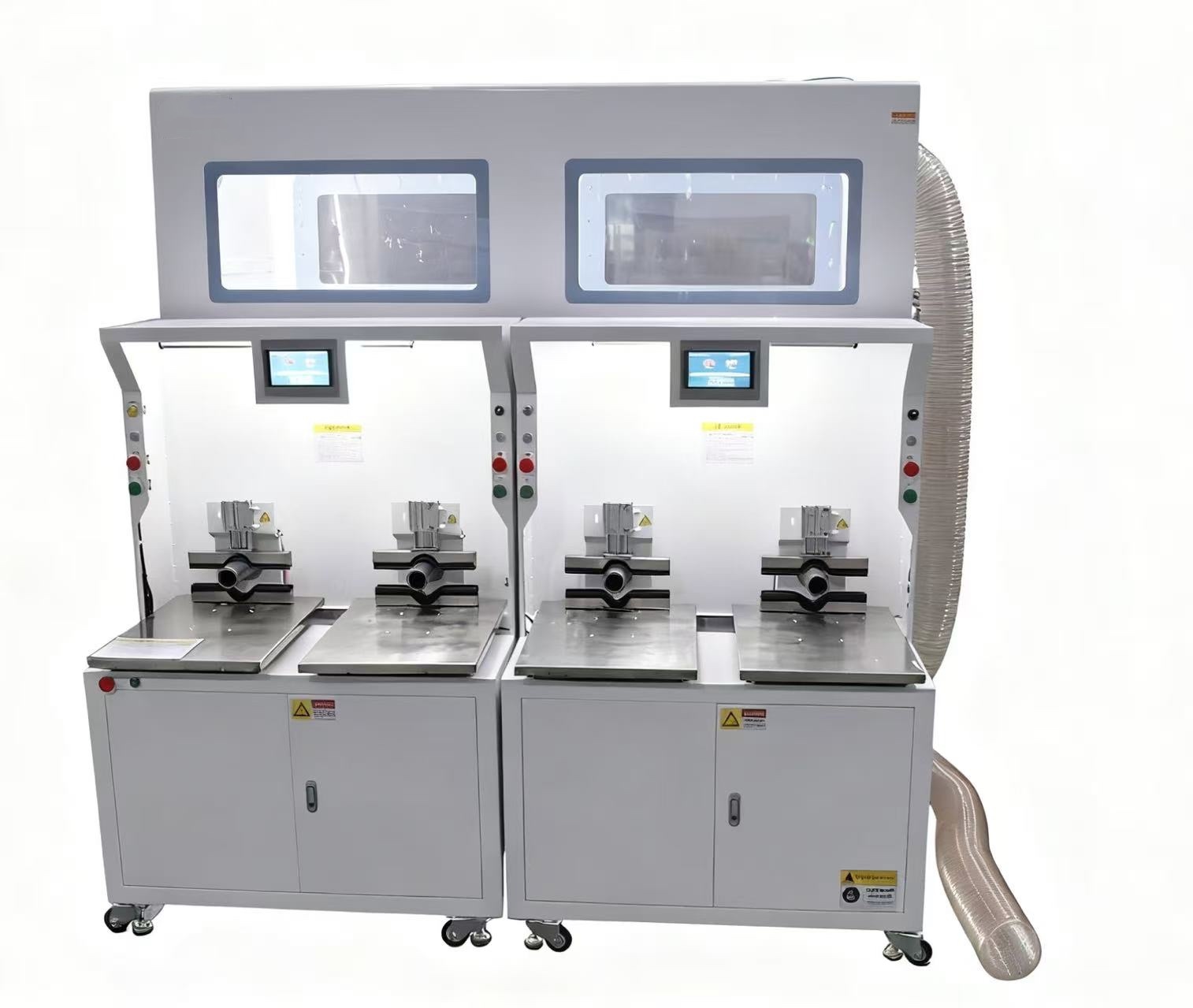

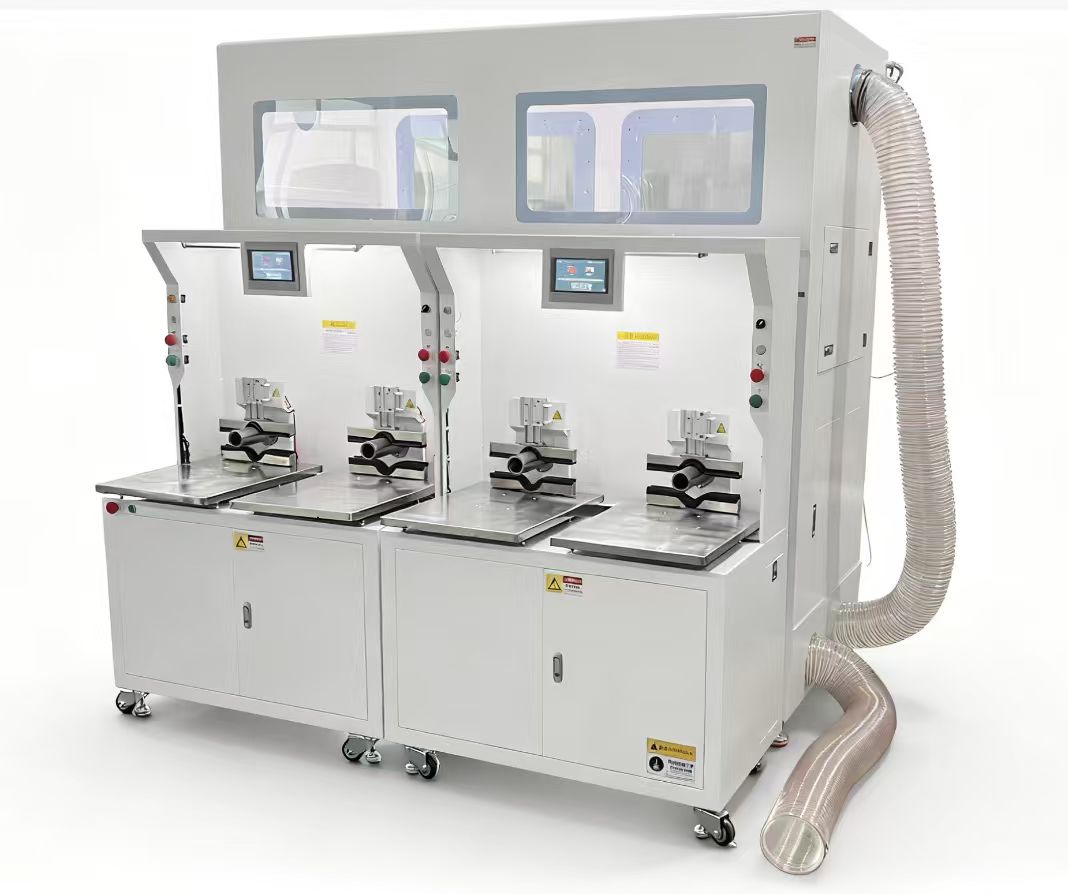

Each automatic pillow filling machine has four stations, but only one person to operate, in the operation process, once the staff set the filling weight on screen , put the pillow inside the clips and press start button, it will begin, then change new empty pillow after finish the previous one , without holding the pillow all the way, it can be described as time-saving and labor-saving.
This machine need to match with 22 KW screw air compressor(at least 15 KW compressor for 4 filling port working at same time) + 1m3 air tank when working.
Be able to work together with fiber opening machine, auto load material into silo when lack of filling material in the filling machine .

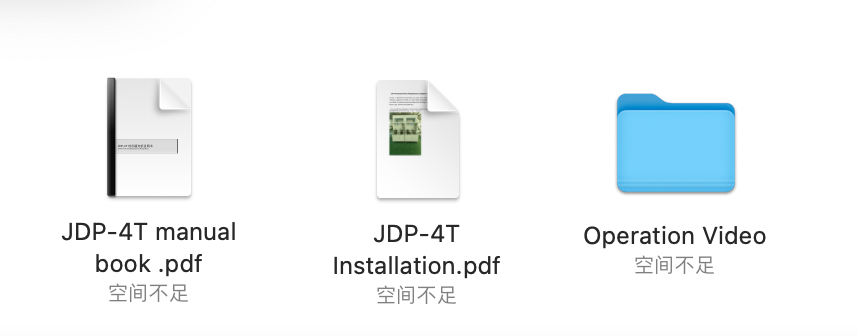

JDP-4T pillow filling manual book and installation operation document and video:
